Screw extractor

Spiral screw extractor

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Germany
Origin: Made in Germany
Screw extractor “Spiral” size 5
SKU: 470 005 3
€4.24
Stock status: Out of stock
Indicative price
Description
  • For extracting broken screws or threaded bolts from threaded holes without causing damage - salvage high-quality products
  • Only suitable for right-hand threads
  • Material: CrV steel, hardened
  • Surface finish: zinc-phosphated
  • Service life varies depending on the hardness of the mating material

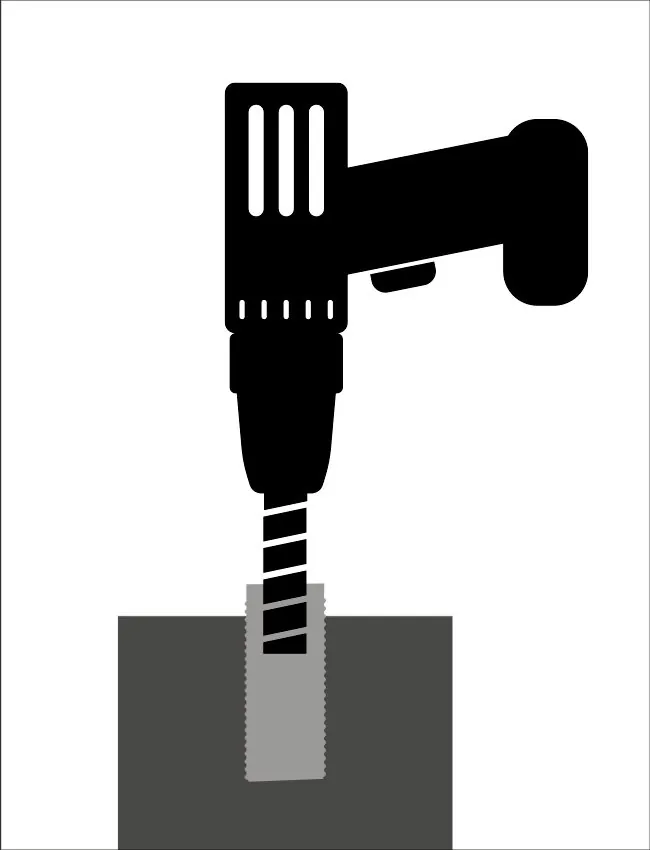

  • Pre-drill the screw to be removed with a suitable drill bit

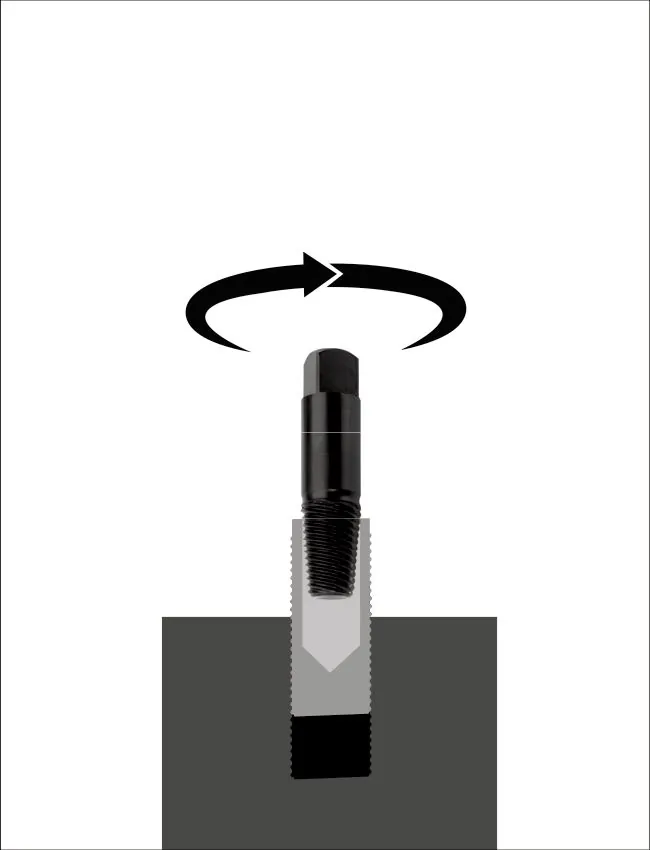

  • Insert screw extractor with suitable tool into the stuck screw, loosen screw and remove

Specifications

  • Weight: 47 g
  • Length: 78 mm
  • Width: 11 mm
  • Height: 11 mm
  • Finish: zinc-phosphated
  • Size: 5
  • for fastener: M14 – M18
  • Drill dia.: 7 – 11 mm
  • Tip: 6.35 mm
  • Shank: 11 mm

Specifications

  • Loại: mũi lấy vít xoắn Spiral
  • Size: 5
  • Vật liệu: thép CrV tôi cứng
  • Bề mặt: phosphat kẽm
  • Chiều dài tổng thể: 78 mm
  • Chiều rộng: 11 mm
  • Chiều cao: 11 mm
  • Đường kính đầu mũi: 6.35 mm
  • Đường kính thân: 11 mm
  • Phạm vi ren phù hợp: M14 – M18
  • Đường kính khoan dẫn hướng: 7 – 11 mm
  • Loại ren: ren phải
  • Trọng lượng: 47 g
