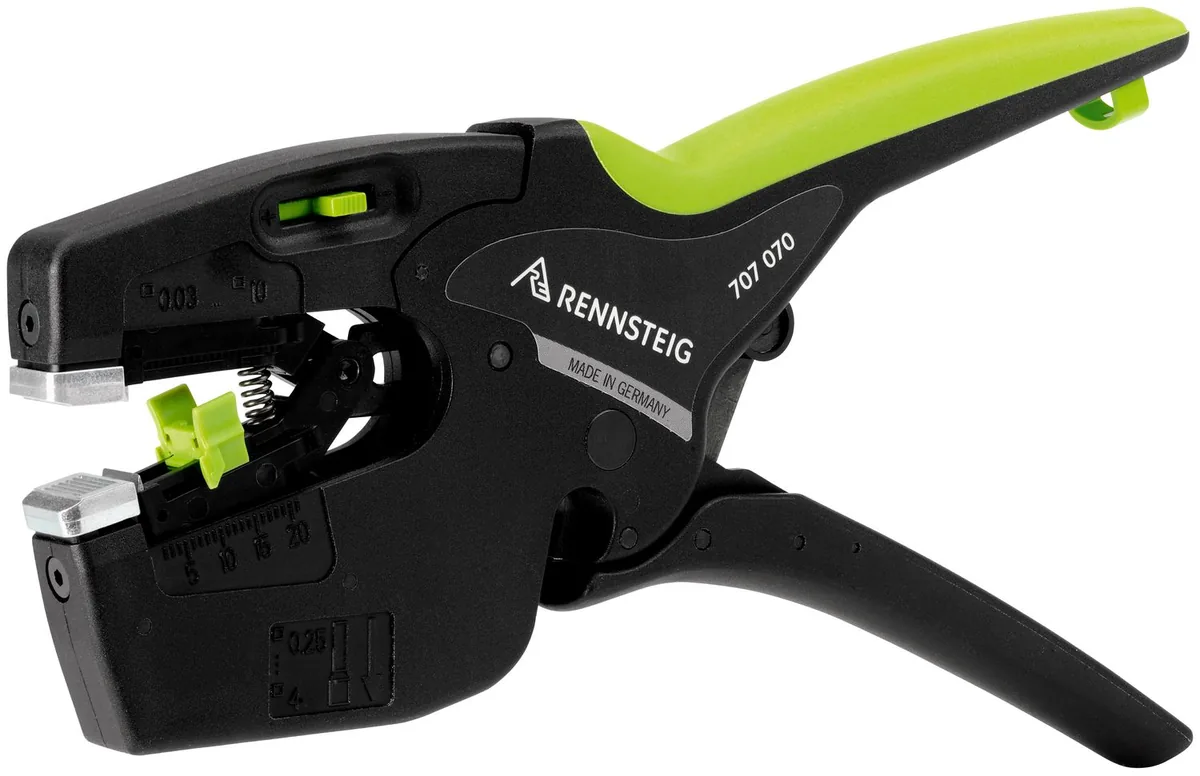

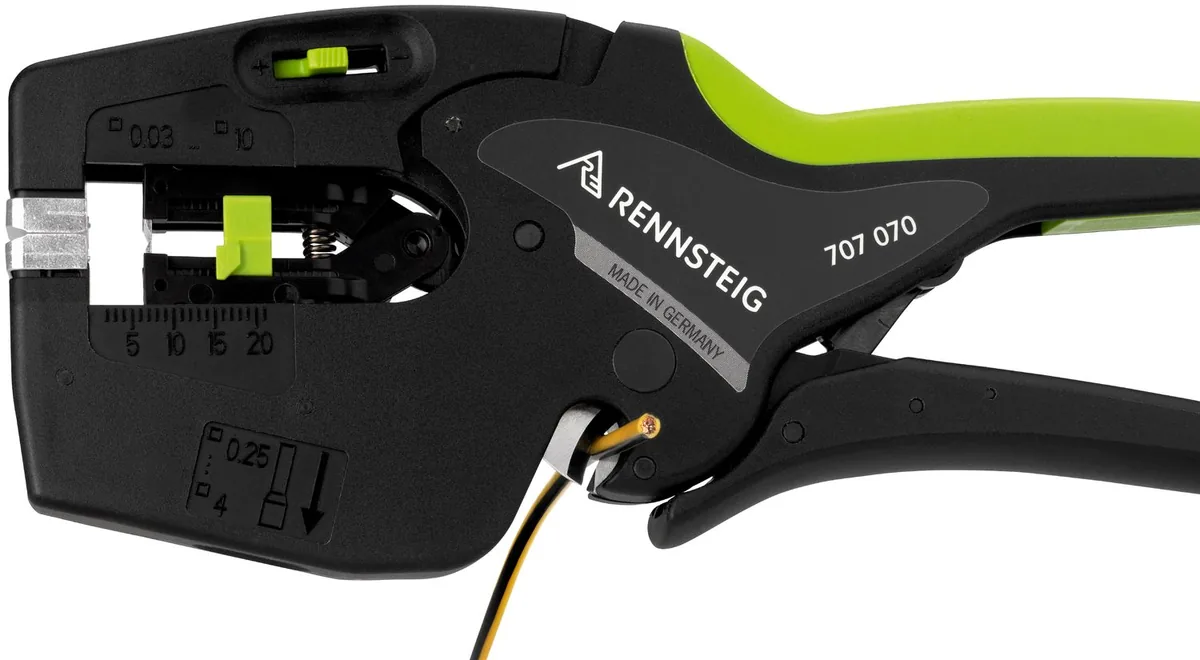

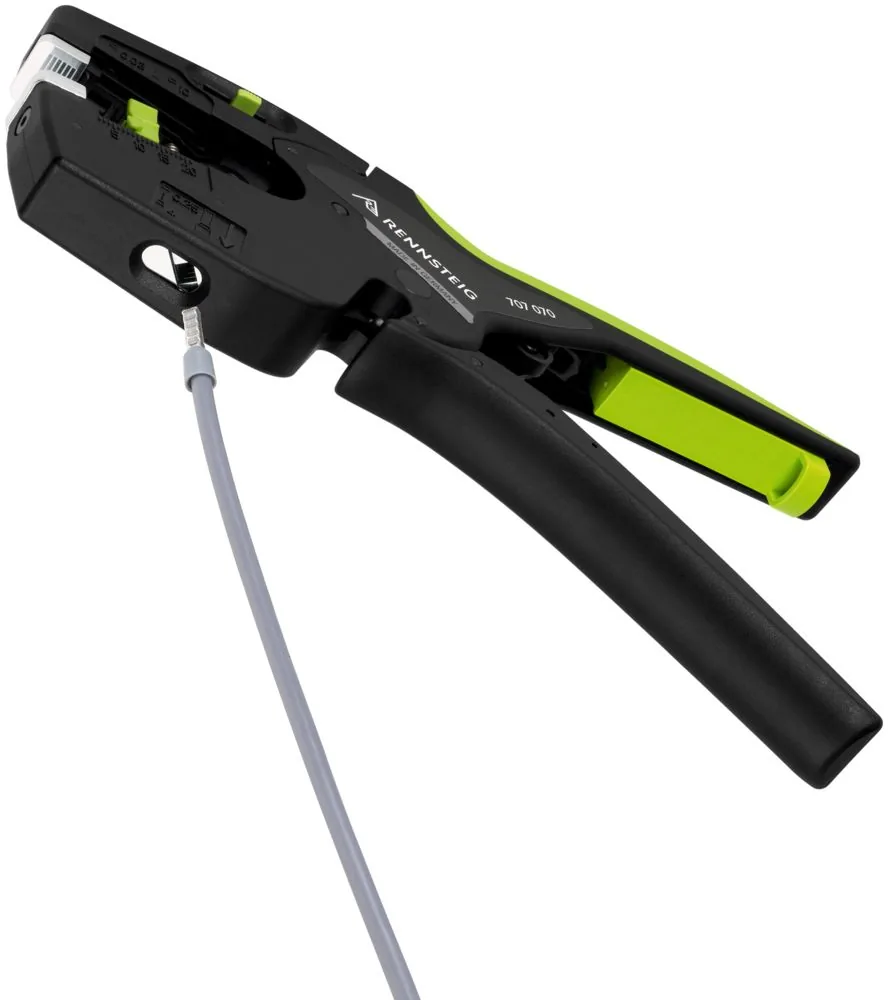

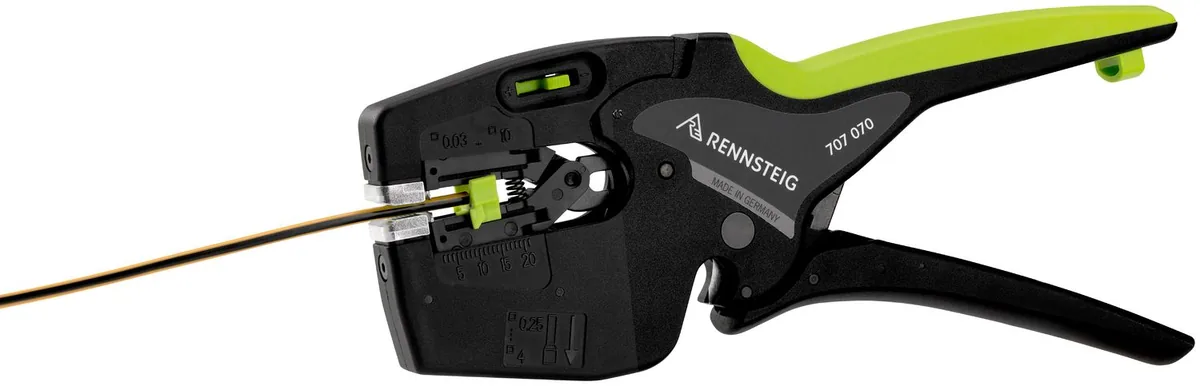

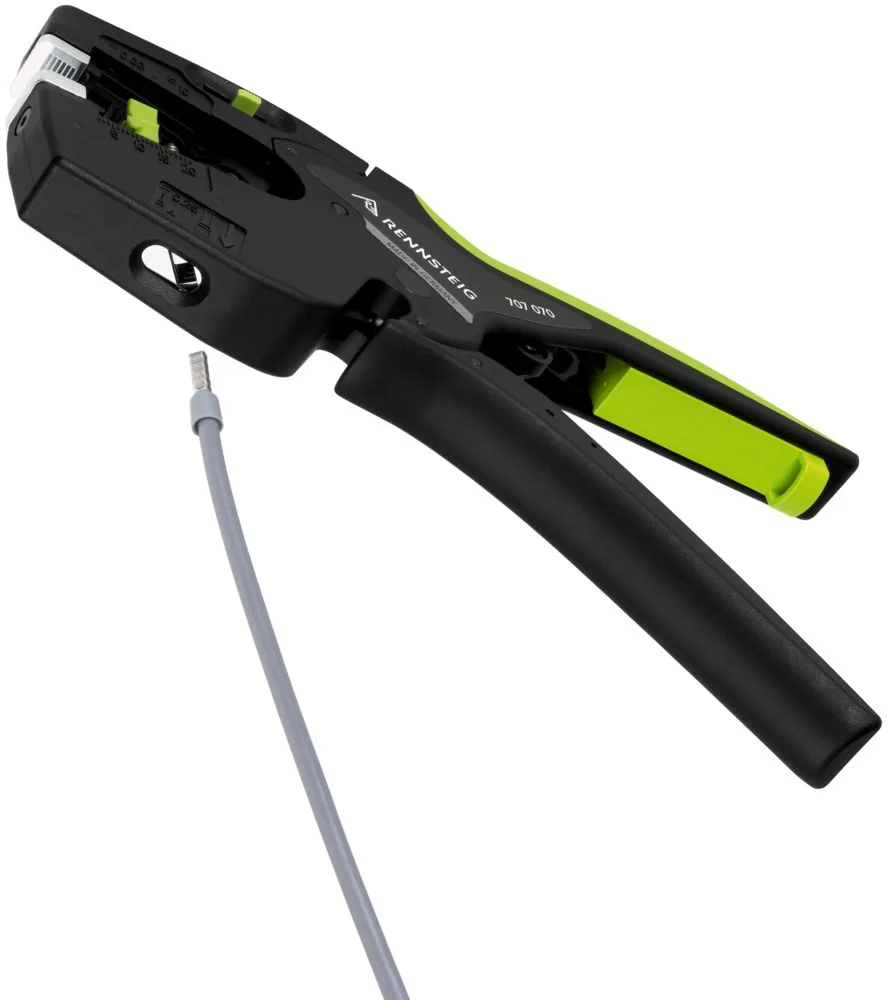

MultiStrip® 10 plus

• Cutting, stripping and crimping in a single tool
• Suitable for single- and multi-conductor cables with PVC insulation and a wide range of special insulation types, such as PTFE and rubber insulation
• Insulation strippers adjust automatically to the cross-section and insulation thickness
• Metal clamping jaws hold the cable securely without slipping and without damaging the remaining insulation
• with square crimp function for ferrules, self-adjusting in the range 0.25 – 4 mm²
• Precise and self-adjusting square crimping of ferrules according to DIN 46228 part 1+4
• Consistent crimping quality by forced-lock completion of crimping process
• Interchangeable blade block and length stop
• Glass fibre-reinforced housing, ergonomic two-component grip
• Integrated wire cutter for multi-stranded cables up to 10 mm² and solid up to 6 mm²

Technical data

• Art. No.: 707 070
• EAN: 4049002151804
• Weight: 168 g
• Dimension: 194 x 72 x 18 mm
• Cutting: 10.0 mm² / AWG 8
• Stripping: 0.03 – 10.0 mm² / AWG 32 – 8
• Crimping ferrules: 0.25 – 4.0 mm² / AWG 22 – 10
• Crimping twin ferrules: 2x 0.25 – 2.5 mm² / 2x AWG 22 – 14
