Home Crimping pliers Ferrule crimping tool PEW 8.286
Categories

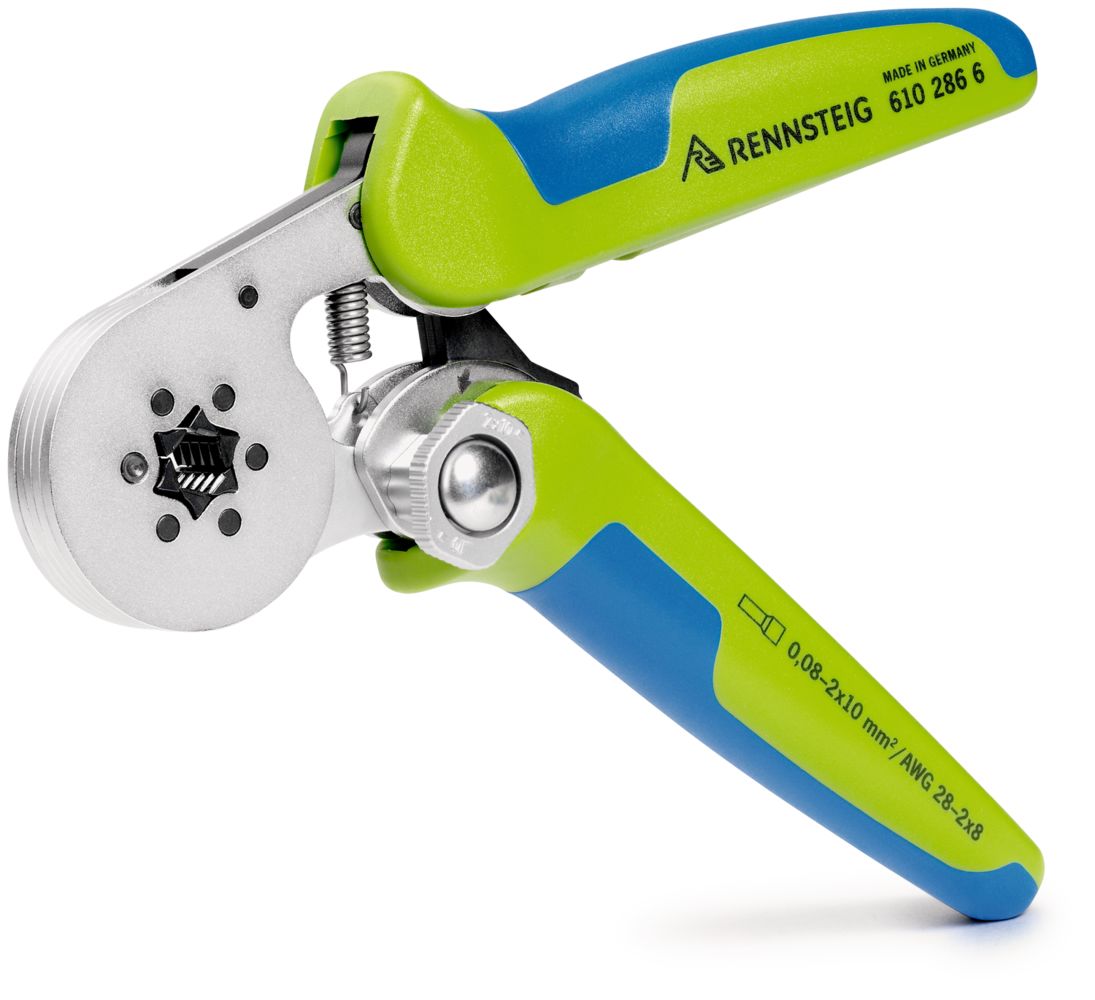

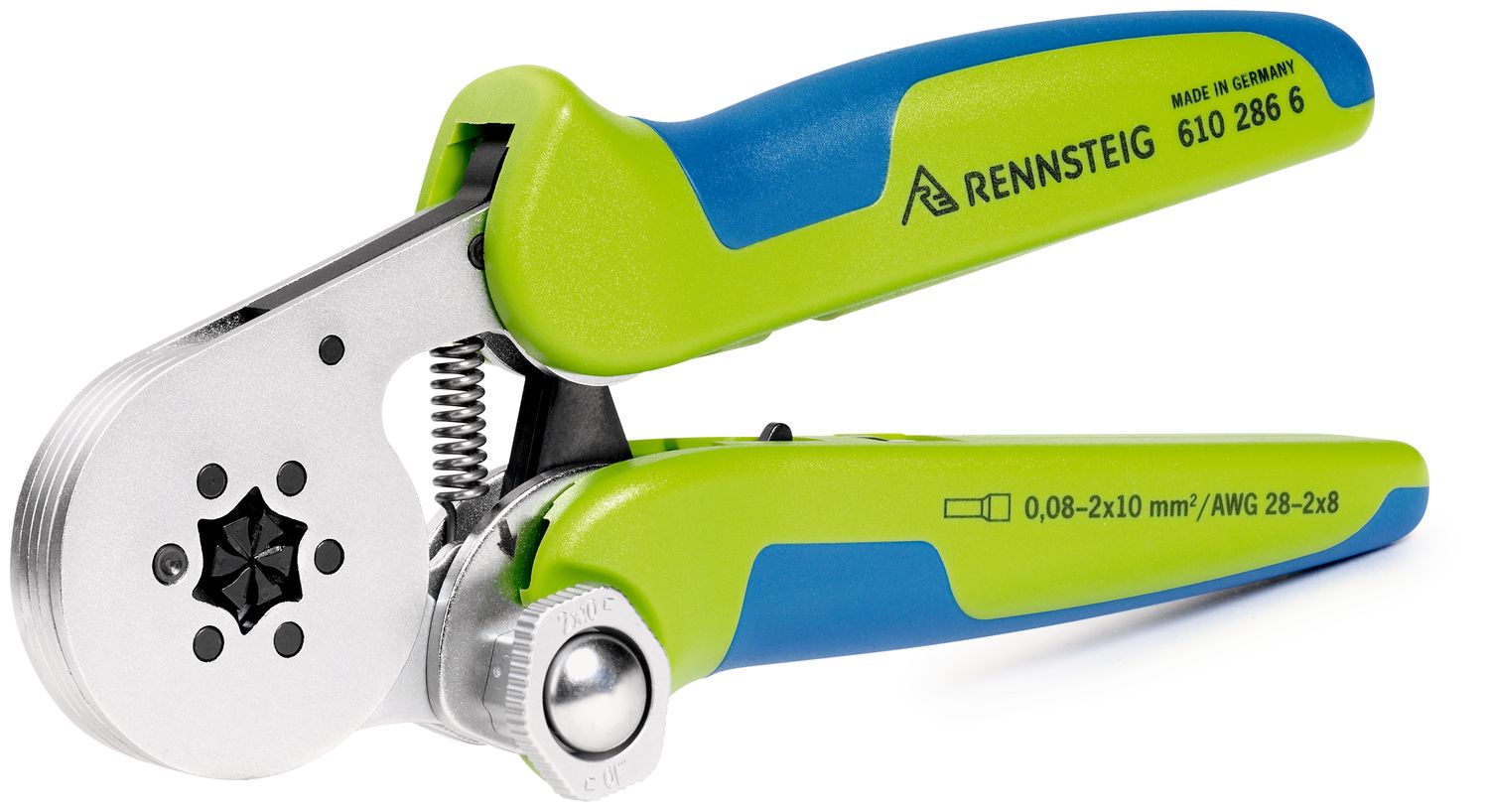

Ferrule crimping tool PEW 8.286
Crimping pliers

Ferrule crimping tool PEW 8.286

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Germany
Origin: Made in Germany
Sideways insertion
SKU: 610 286 6
€295.00
Stock status: Out of stock
Indicative price
PDF catalog
Description

Sideways insertion

  • For crimping insulated and non-insulated ferrules according to DIN 46 228
  • Self-adjusting adaptation to the required size of ferrule

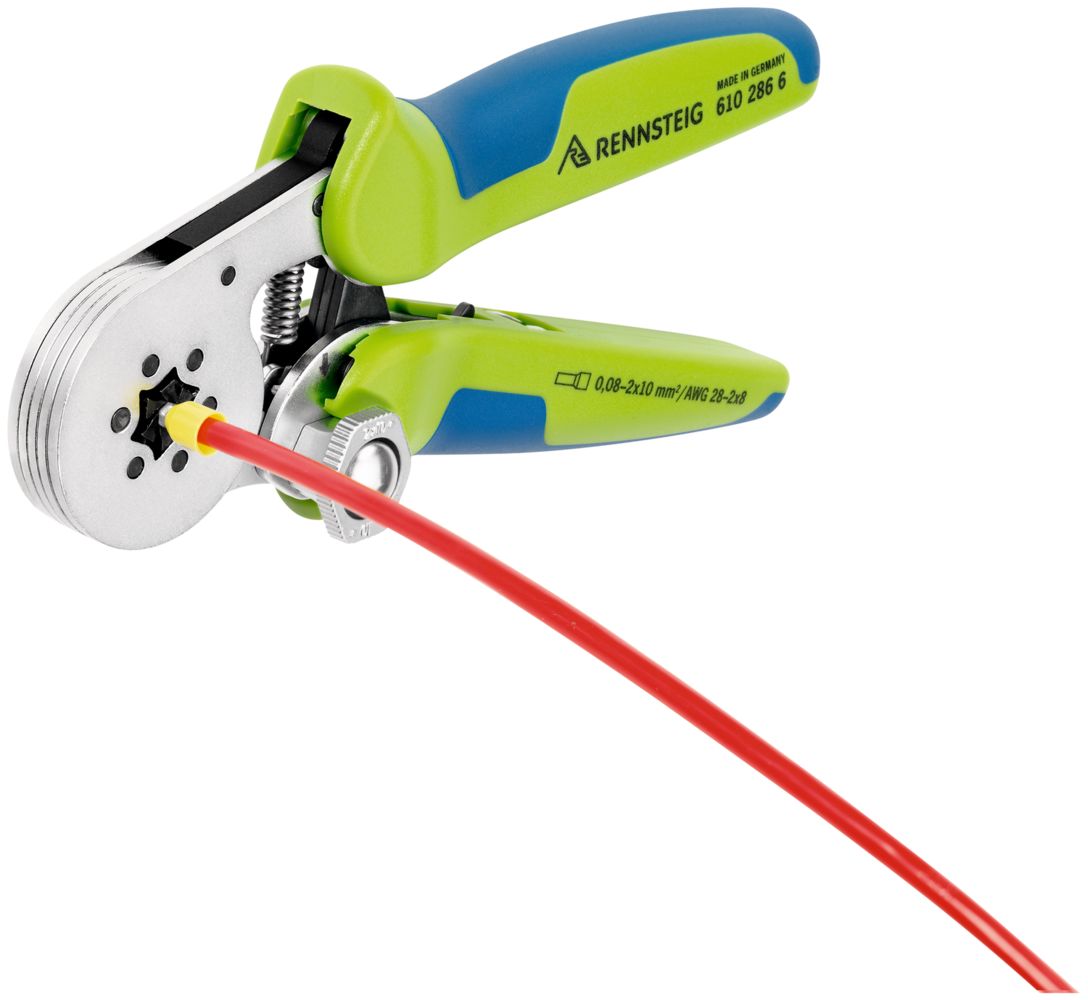

  • Ferrules are inserted sideways into the tool
  • Force magnified by lever action to ensure fatigue-free working
  • Precise, factory-set (calibrated) crimping pressure
  • Consistent crimping quality with forced-lock completion of crimping process (can be released)

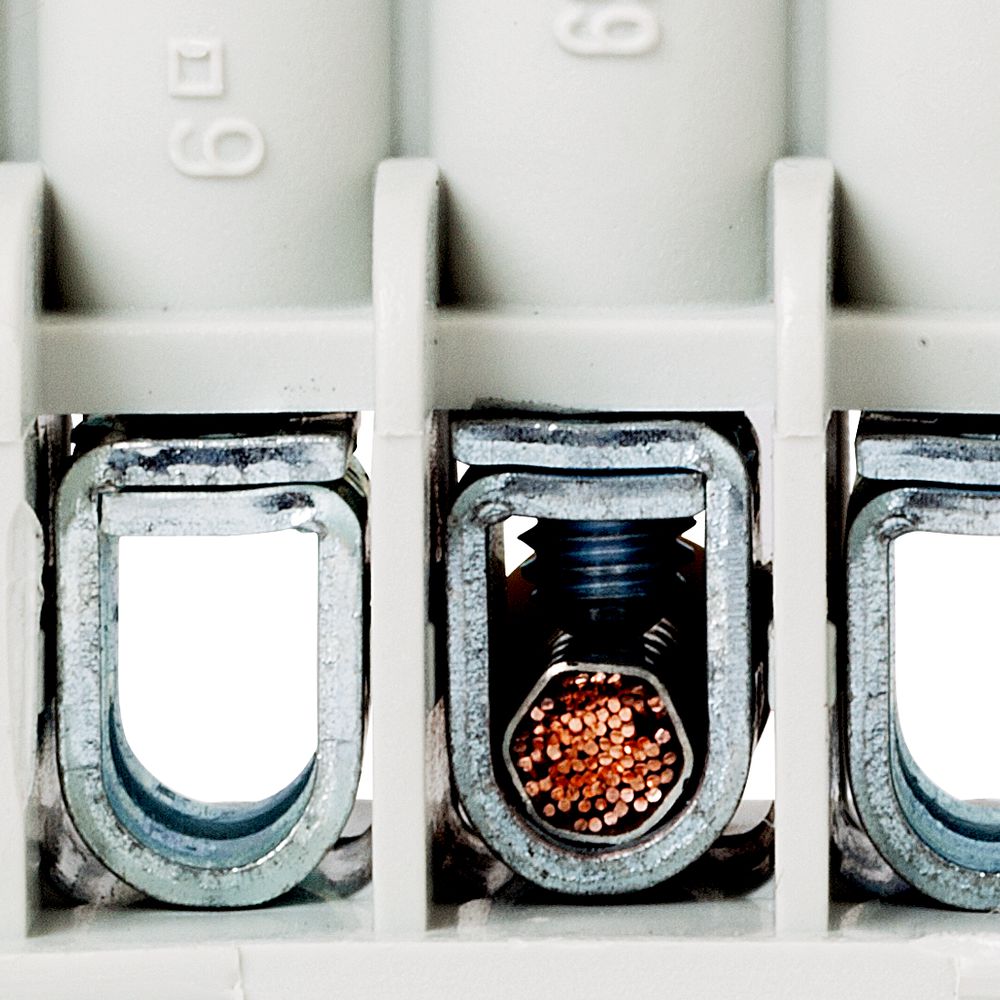

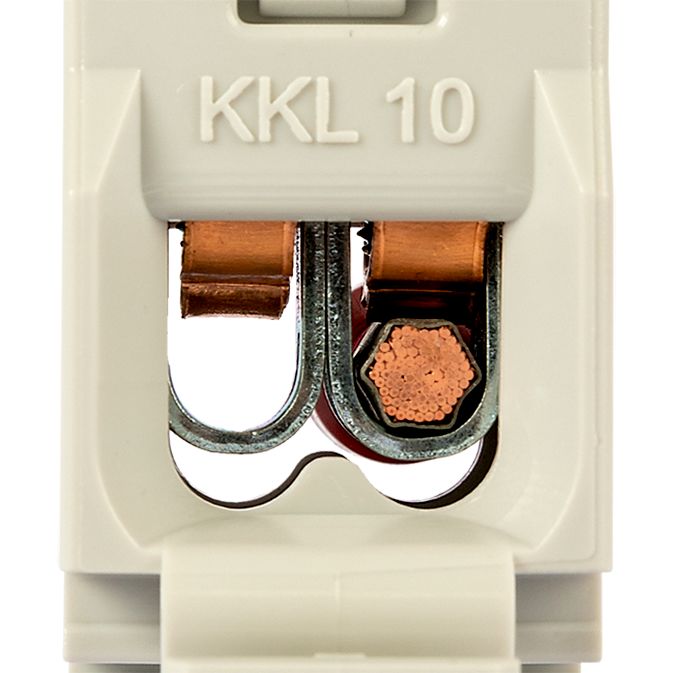

  • Hexagonal crimp profile with 6 profiled crimp surfaces
  • Chrome finish
  • Specially hardened spring steel
  • Ergonomic 2-component grips

Technical data

  • Art. No.: 610 286 6
  • EAN: 4049002150753
  • Weight: 417 g
  • Dimension: 176 x 74 x 31 mm
  • Finish: chrome plated
  • Number of crimping positions: 1
  • Ferrules: 0.08 – 16.0 mm² / AWG 28 – 6

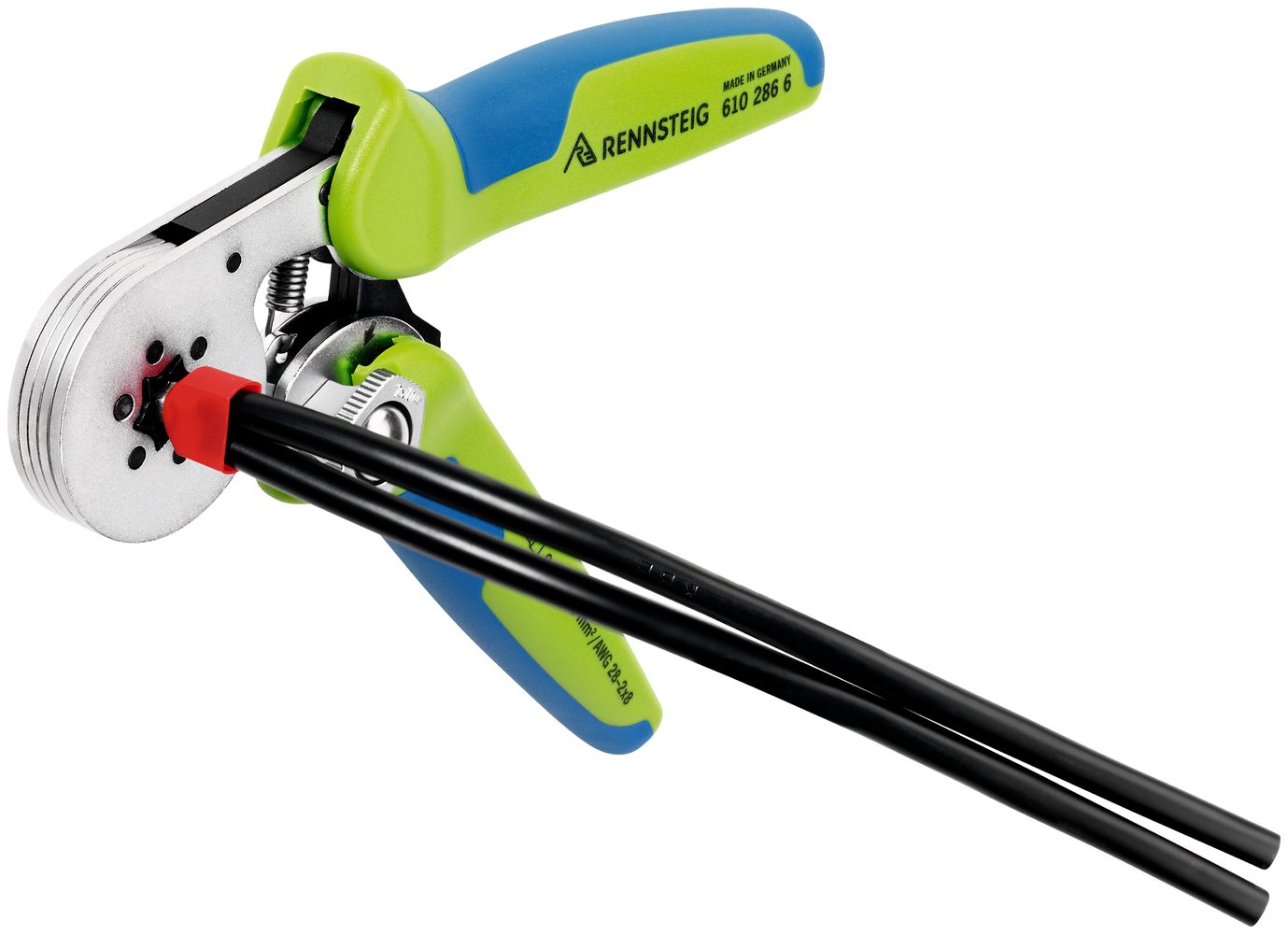

  • Twin ferrules: 2x 0.25 – 10.0 mm² / 2x AWG 22 – 8
  • Crimp surfaces: 6 profiled crimp surfaces
  • Contact insertion: Sideways insertion

Specifications

  • Trọng lượng: 417 g
  • Kích thước: 176 x 74 x 31 mm
  • Bề mặt: mạ chrome
  • Số vị trí ép: 1
  • Cos đơn: 0.08–16.0 mm² / AWG 28–6
  • Cos đôi: 2x 0.25–10.0 mm² / 2x AWG 22–8
  • Mặt ép: 6 mặt profil lục giác
  • Cơ chế chèn cos: chèn ngang (sideways insertion)
  • Vật liệu: thép lò xo tôi đặc biệt
  • Tay cầm: 2 thành phần ergonomic
  • Tiêu chuẩn: DIN 46 228
