with 360° rotatable crimp die
- Offers the advantages of tools with front and sideways insertion in a single, universal tool
- Automatic trapezoidal crimping of insulated and uninsulated ferrules according to DIN 46 228
- Self-adjusting adaptation to the required size of ferrule
- Large cross-section range can be processed without resetting the tool
- Processing of twin ferrules up to max. 2x 6 mm² possible
- Crimping of extra-long ferrules up to 18 mm possible in one work step
- Mechanism design optimises application of manual force, with improved ergonomics for fatigue-free working
- Precise, factory-set (calibrated) crimping pressure, can be re-adjusted
- Consistent crimping quality with forced-lock completion of crimping process (can be released)

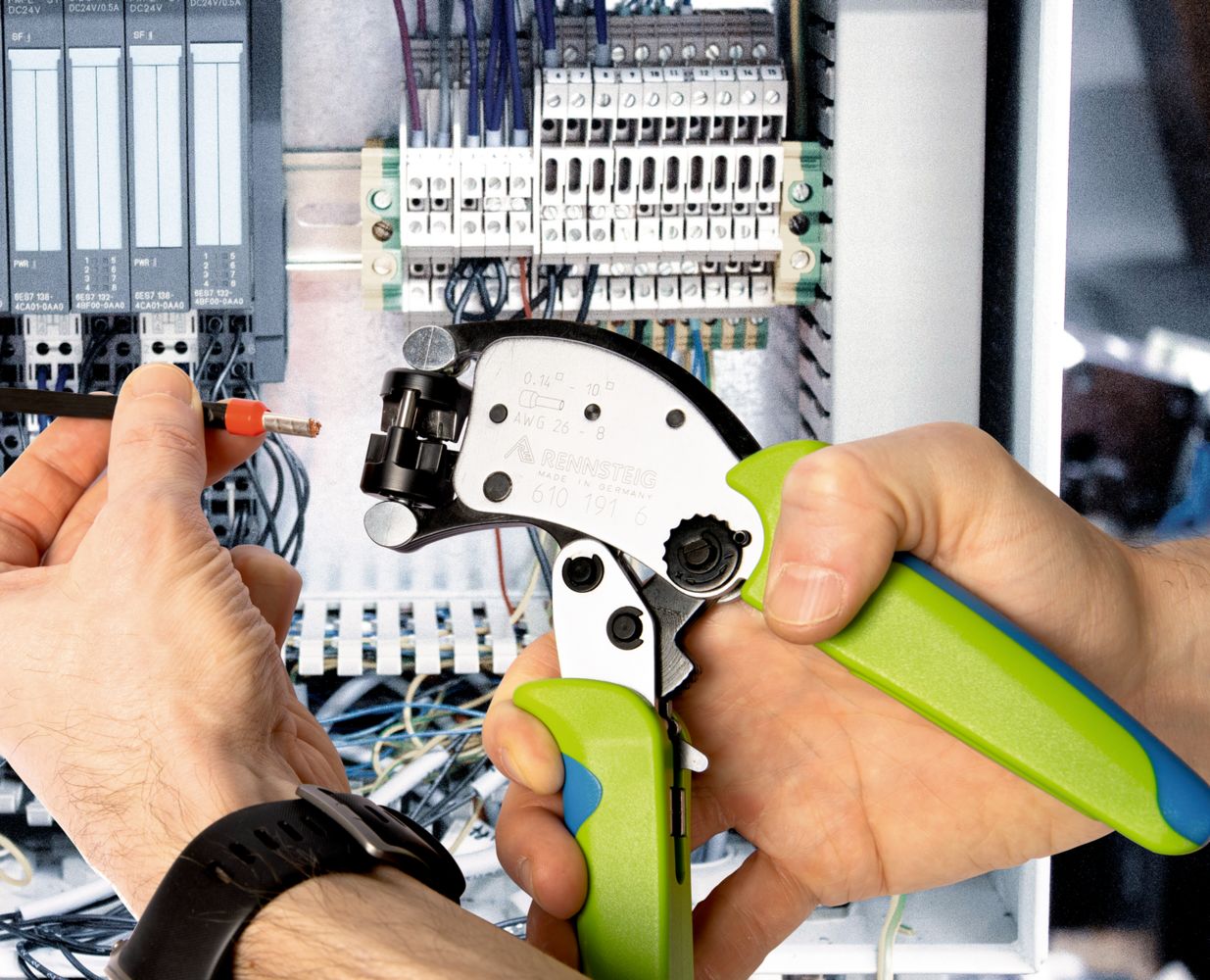

- Ideal for hard-to-reach areas
Technical data

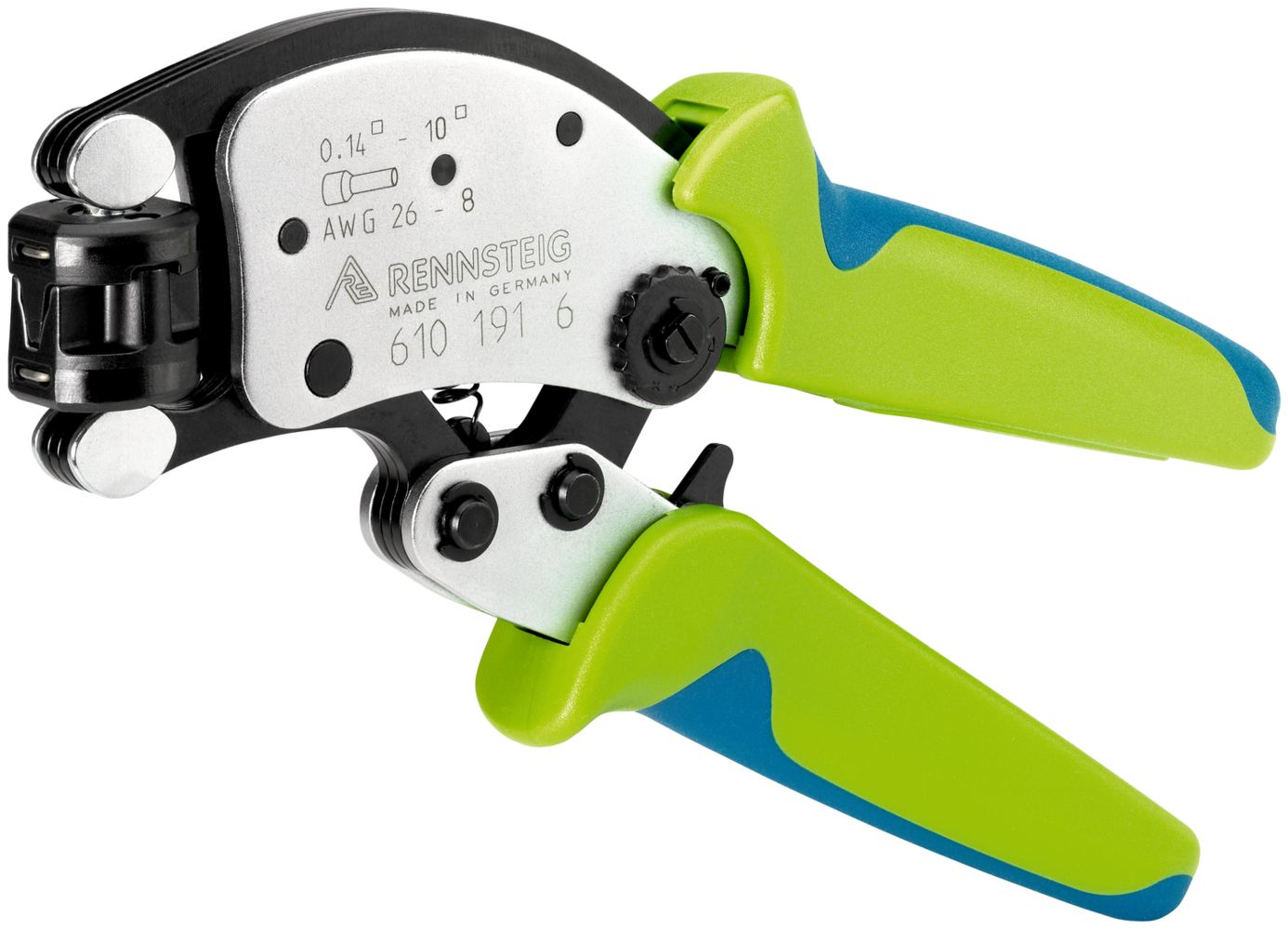

- Art. No.: 610 191 6
- EAN: 4049002151811
- Weight: 490 g
- Dimension: 196 x 80 x 22 mm
- Finish: chrome plated
- Number of crimping positions: 1
- Ferrules: 0.14 – 10.0 mm² / AWG 26 – 8
- Twin ferrules: 2x 0.25 – 6.0 mm² / 2x AWG 22 – 8
- Crimp surfaces: profiled, trapezoidal crimp surfaces

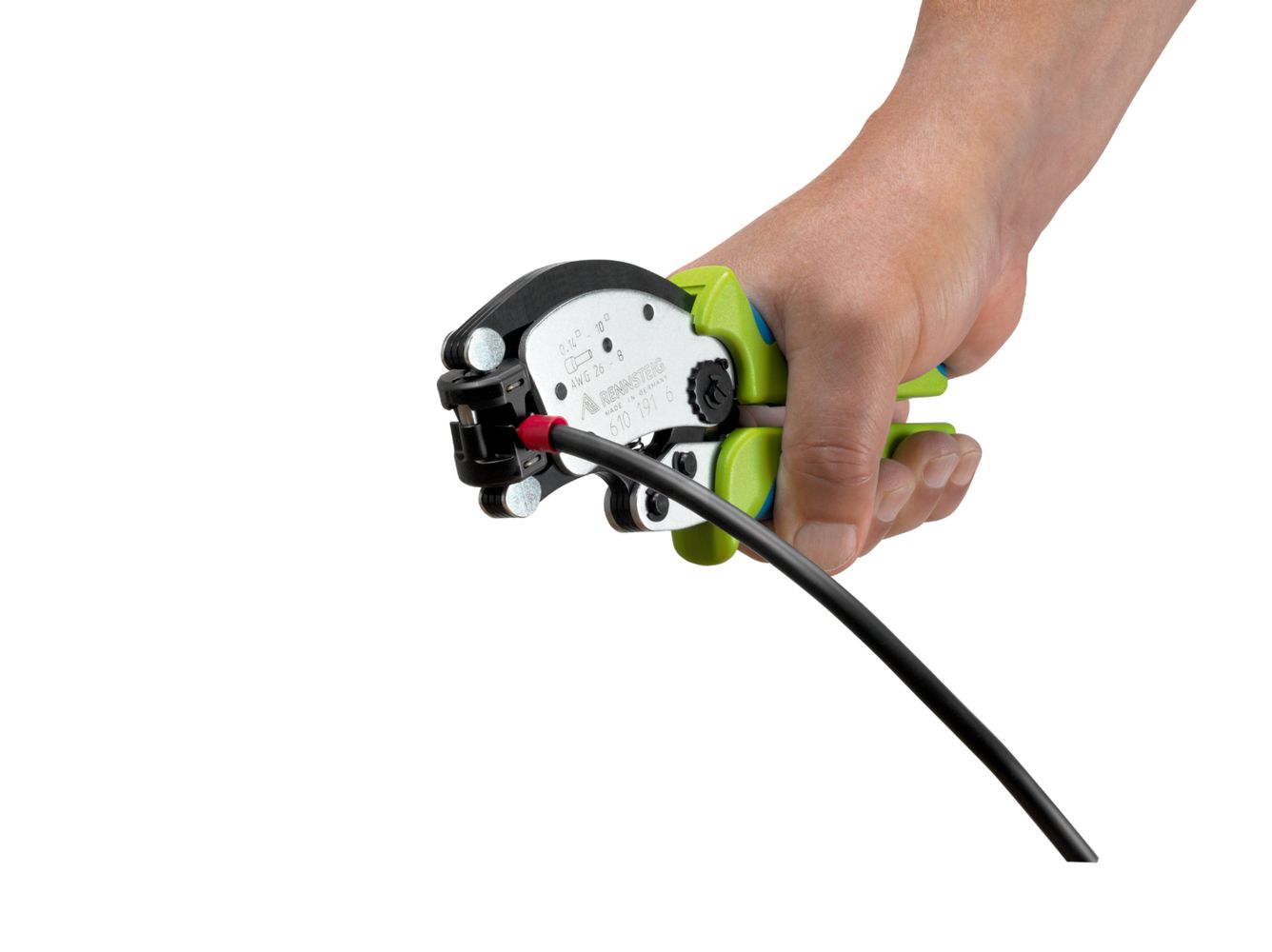

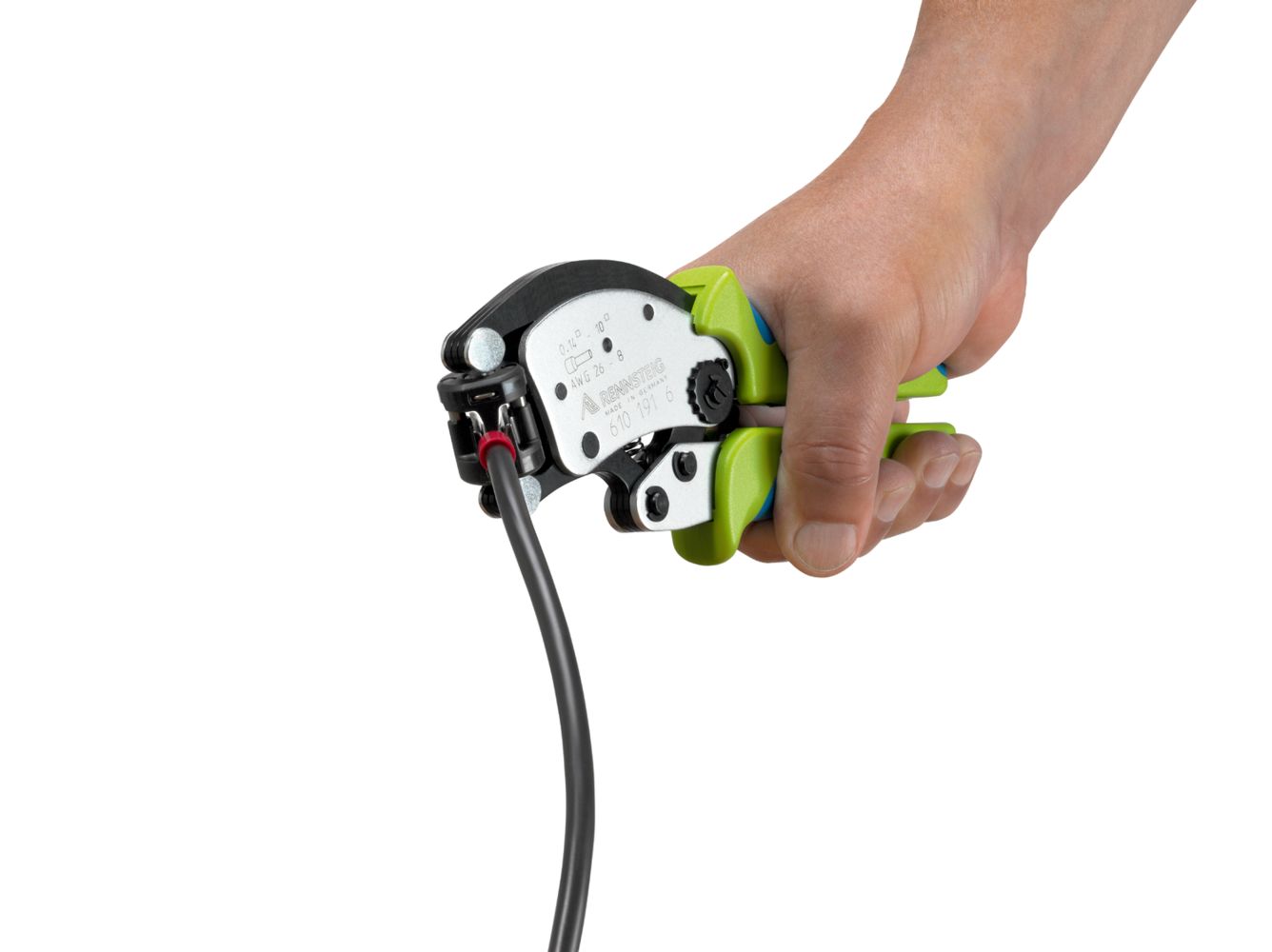

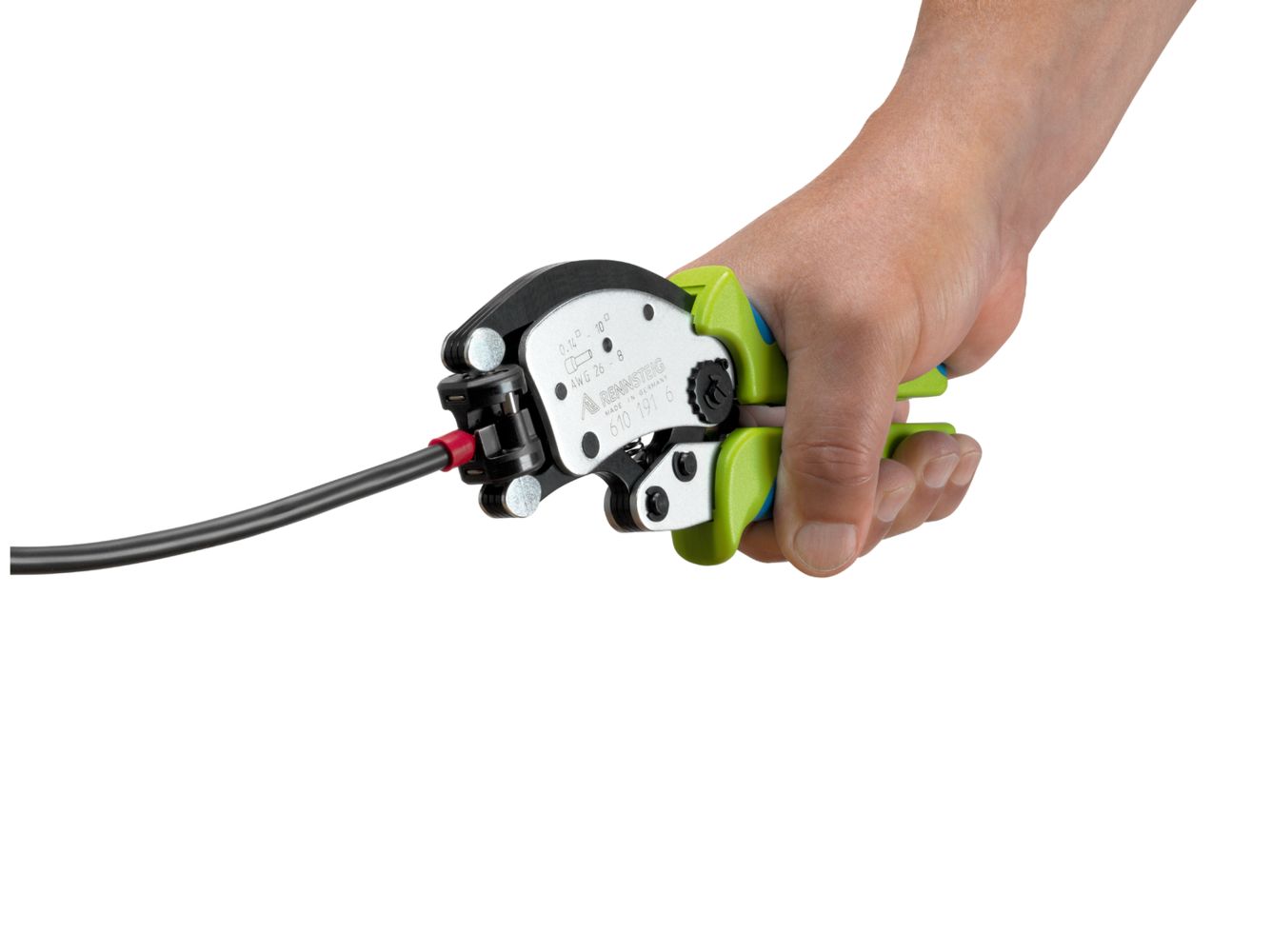

- Contact insertion: Crimp die rotates 360°
