Front and sideways insertion
- For crimping insulated and non-insulated ferrules according to DIN 46 228
- Self-adjusting adaptation to the required size of ferrule
- Easiest to work with when working conditions are cramped
- Square crimp profile with 4 profiled crimp surfaces
- Precise, factory-set (calibrated) crimping pressure, can be re-adjusted
- Force magnified by lever action to ensure fatigue-free working
- Consistent crimping quality with forced-lock completion of crimping process (can be released)
- Specially hardened spring steel

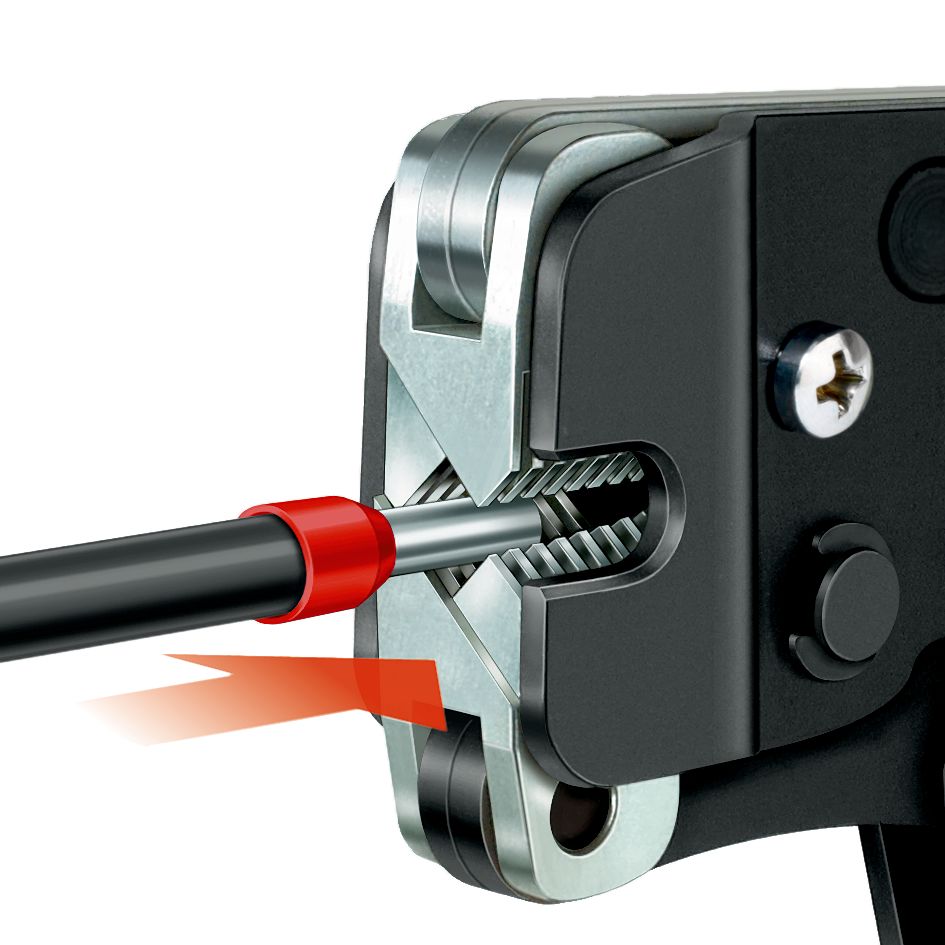

- Front insertion up to max. 10.0 mm² possible

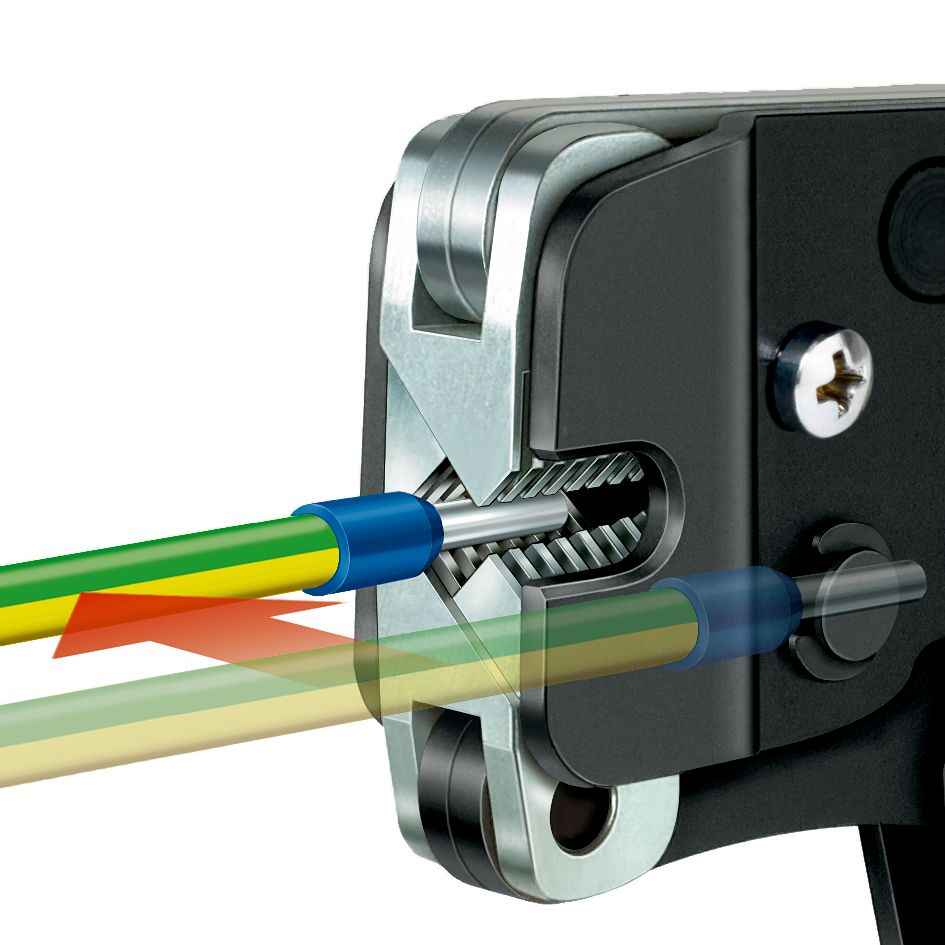

- Sideways insertion up to max. 2.5 mm² possible
Technical data
- Art. No.: 610 087 3
- EAN: 4049002016417
- Weight: 520 g
- Dimension: 194 x 78 x 24 mm
- Finish: black-oxide finish
- Number of crimping positions: 1
- Ferrules: 0.08 – 10.0 mm² / AWG 28 – 8
- Twin ferrules: 2x 0.25 – 4.0 mm² / 2x AWG 22 – 10
- Crimp surfaces: 4 profiled crimp surfaces
- Contact insertion: Front and sideways insertion
