Parallel pin punch

“Exclusive” parallel pin punch

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Germany
Origin: Made in Germany

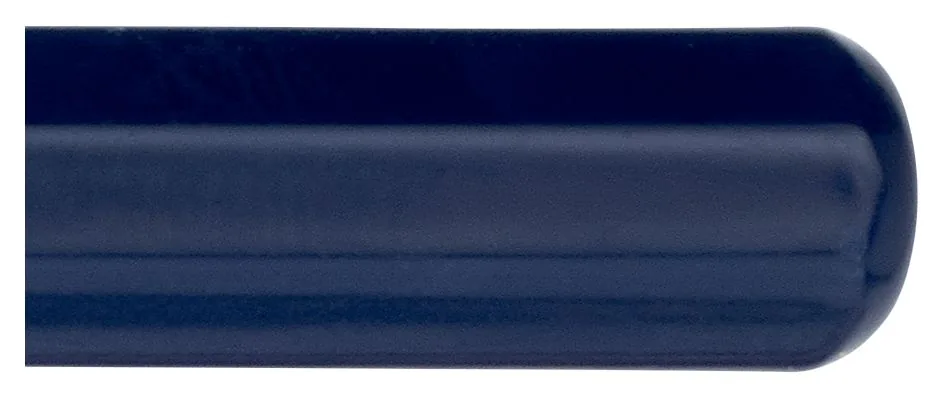

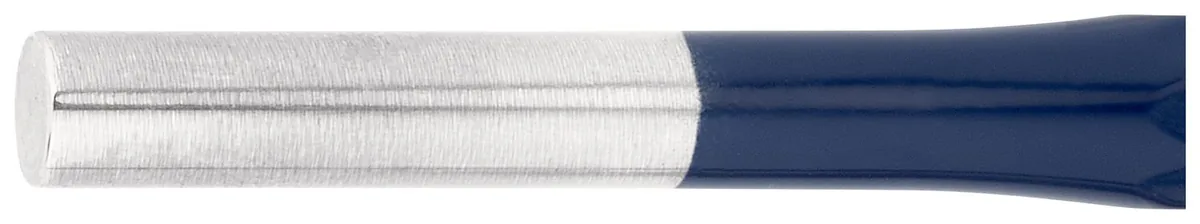

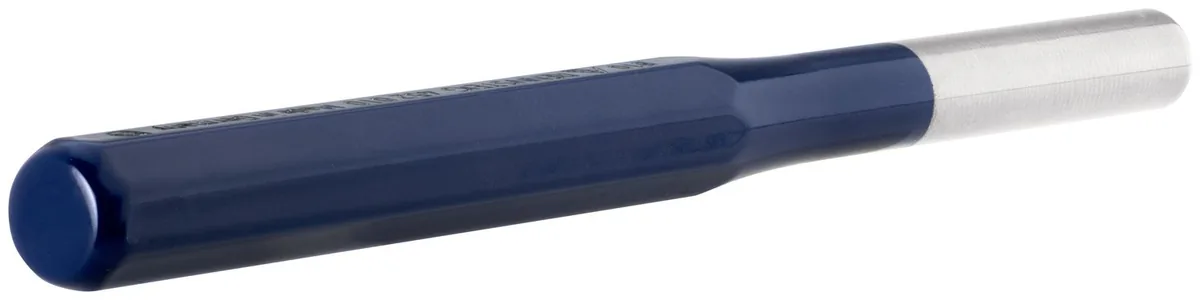

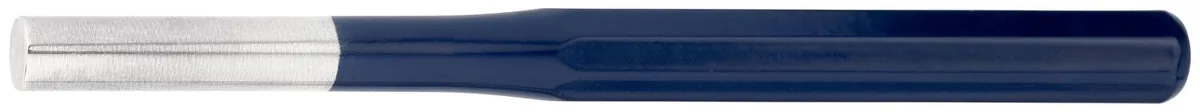

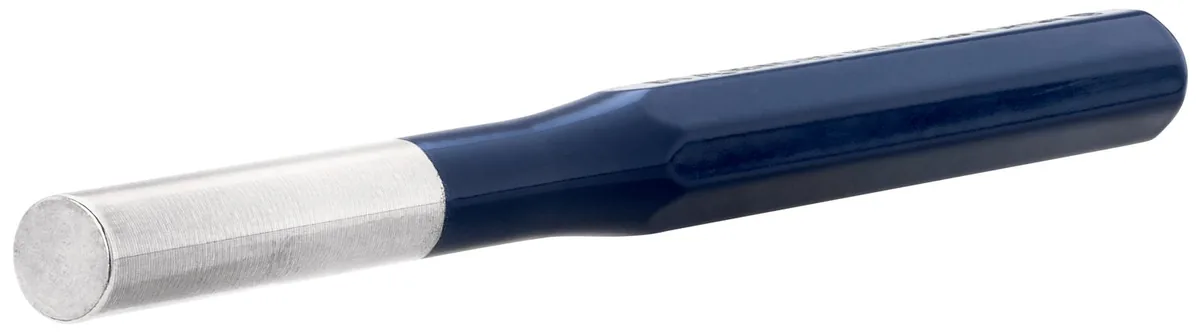

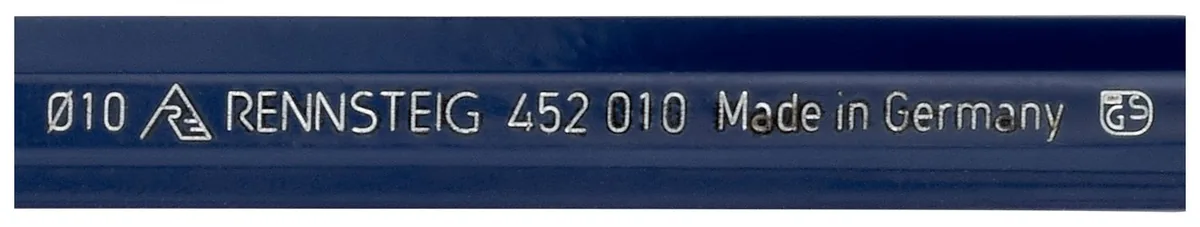

Parallel pin punch “Exclusive” dark blue 150 x 12 x 10
SKU: 452 010 6 RC
€9.51
Stock status: Out of stock
Indicative price
Description
  • For driving out or removing bolts, rivets, cotter pins or other fasteners from through-holes
  • Alternatively for accurately countersinking the above-mentioned fasteners into the workpiece surface
  • Premium tool steel, hardened and tempered throughout, hardness ≥ 58 HRC
  • Special safety impact head prevents material splintering and deformation
  • Highly polished using an optimised process - no chrome is needed
  • Hardened throughout for optimum transmission of force
  • Powder coated
  • Rounded edges prevent damage to the workpiece
  • Meets or exceeds requirements from current (e.g. DIN) standards
  • All metal parts are GS-approved

Specifications

  • Weight: 125 g
  • Length: 150 mm
  • Finish: powder coated
  • Color: dark blue
  • Tip diameter: 10 mm
  • Width across flats: 12 mm
  • Profile: octagonal

Specifications

  • Chiều dài tổng thể: 150 mm
  • Đường kính đầu đục: 10 mm
  • Kích thước tiết diện: 12 mm (bát giác)
  • Trọng lượng: 125 g
  • Vật liệu: thép dụng cụ cao cấp
  • Độ cứng: ≥ 58 HRC (tôi thấu)
  • Lớp phủ: bột tĩnh điện
  • Màu sắc: xanh đậm
  • Tiêu chuẩn: DIN
  • Chứng nhận: GS (bộ phận kim loại)
Optional Accessories
SKU Image Price VNĐ Product name & short description
425 560 6 RC “Exclusive” pin punch set
€59.45
“Exclusive” pin punch set
Bộ đột chốt song song “Exclusive” gồm 6 chi tiết, được làm từ thép công cụ cao cấp, tôi luyện toàn bộ với độ cứng ≥ 58 HRC, giúp tháo hoặc đóng chốt, bu lông, đinh tán qua lỗ xuyên một cách hiệu quả. Đầu chịu lực an toàn hạn chế vỡ vụn, các cạnh bo tròn bảo v…
425 530 6 RC “Exclusive” pin punch set
€69.89
“Exclusive” pin punch set
Bộ đột chốt Rennsteig 425 530 6 RC gồm 6 chi tiết, chuyên dùng để tháo hoặc chôn chìm bu-lông, đinh tán, chốt chẻ qua lỗ xuyên. Sản phẩm làm từ thép dụng cụ cao cấp, tôi ram toàn bộ, độ cứng ≥58 HRC, đầu chịu va đập an toàn, phủ sơn tĩnh điện, cạnh bo tròn bả…
